| Other
products/Quick change toolposts |
|
| The ADRI-PFM quick change toolpost is
indispensable for any turret lathe, and can also be used on
CNC lathes. It is useful in small or large production runs,
in tool workshops or in maintenance. |
|
|
 |
| |
|
 |
Carry out any number of operations on
the work piece without removing it from the lathe,
guaranteeing the same tolerance on every piece in
the production run. |
|
Set-up times between operations can be
reduced by 90% due to extreme easiness of use. |
|
Allows holes to be drilled with the use
of the Morse Taper. |
|
Eliminates the need for imprecise and
time consuming placement of shims. |
|
Cutting tools may be sharpened without
being removed from the toolholder. |
| |
|
|
|
|
Vibration free. |
|
Precision finishing. |
|
Manufactured in steel, hardened and precision ground. |
| |
|
|
|

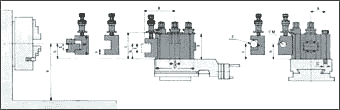

| H. max. |
175 |
200 |
230 |
300 |
>300 |
| PFM
model |
2A or 3A |
2AB or 3AB |
2B or 3B |
2C or 3C |
2D or 3D |
| h |
25-39 |
30-53 |
36-60 |
38-66 |
46-87 |
 |
100 |
115 |
127 |
150 |
175 |
| T |
60 |
75 |
85 |
95 |
120 |
| L |
64 |
79 |
89 |
100 |
127 |
| A H7 |
28 |
28 |
34 |
38 |
42 |
| B |
36,5 |
41,0 |
45,5 |
54,5 |
61,0 |
| C j6 |
10 |
12 |
12 |
14 |
16 |
| E |
77,5 |
94,0 |
101,5 |
117,5 |
137,0 |
| S. max. |
20 |
25 |
32 |
32 |
40 |
| d |
16 |
20 |
24 |
26 |
32 |
| M.T. Nº |
2 |
3 |
3 |
4 |
4 |
| K |
5/8" |
3/4" |
3/4" |
1" |
1" |
| Q |
56 |
65 |
65 |
72 |
86 |
| R |
14 |
16 |
16 |
18 |
21 |
| Range |
14 |
23 |
24 |
28 |
41 |
|
|
|
|
|
|
|
)
)
